Multi 4 Bale Feeder

McIntosh Double Bale Feeder

The McIntosh Multi Bale Feeder has been designed to incorporate strength, ease of use and years of trouble free use. With a spear loading system and low centre of gravity, the McIntosh Multi Bale Feeder will lead the way in feeding out machines.

The Multi Bale Feeder with spear loading system features two box sections running through the cradle for greater strength and a lower centre of gravity rather than having the feeder on top of the chassis runners. With a lower centre of gravity, the tyres can be kept in closer towards the centre of the Bale Feeder. Also with the wider cradle there is a much smaller chance of running over the product even when there is a strong wind and in muddy conditions.

Standard Features

Loaded with 3 round bales. A fourth bale can be carried on the rear spears. This bale feeder is fitted with the optional 11.5/80-15.3 tractor tread tyres

Loaded with two round and one eight foot square bale.

With the yellow slat located on top of the cradle, the rolling teeth are set in the loading position. The rolling teeth ensure the bale doesn’t get stuck when being pushed onto the cradle which makes loading a breeze.

Once the bale is loaded onto the tray the back stop pushes the bale forward and returns for the next bale.

The double ram loading system lowers the bale gently all the way to the cradle without sudden drops.

Diverter Valve Multi Bale feederDiverter valve which changes the oil flow from loading spears to the sliding frame which pushes the bale along.

Steel box to hold plastic wrap. The galvanised mesh floor allows water and dirt to fall out and reduces the smell compared to an enclosed box.

Large 8 tooth sprocket improves the life and drive of the chain compared to a 6 tooth sprocket

  • 1’’ high tensile bar drive dog pins (direct drive)
  • 3" 12,000lb zinc - plated roller chains
  • 5mm thick medium tensile end plates
  • 60mm hubs
  • 8 tooth sprocket for longer life and better drive
  • Bolt on slats
  • Bronze bushes on drive shaft - no bearings
  • Covered drive shaft to stop silage getting caught
  • Swivel drawbar 45mm eye
  • Dual aggression pins
  • Easy access grease points
  • Fully enclosed galvanised plate floor
  • Feeds out either side
  • Low maintenance and long life
  • Heavy 8mm thick angle slats for better ripping of bales
  • Stand to help pull net off
  • Teeth are bent for better ripping of bale
  • Tyres - 11.5/80-15.3
  • Diverter value so only two hydraulic banks are required for three operations
  • Square side frame on cradle, this helps to keep feed away from tyres.

Optional Extras

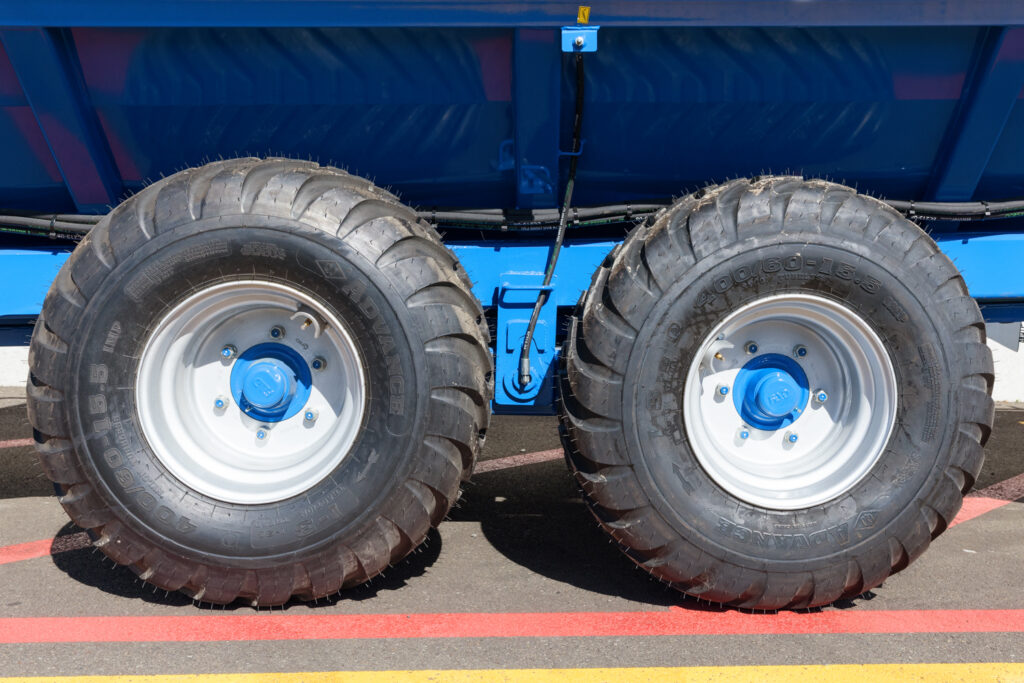

  • Tyres - 11.5/80-15.3 tractor tread
  • Lid on front waste box
  • 400/60-15.5 semi aggressive or tractor tread
  • Square bale attachment kit
  • Trough extension arm
  • LED lights
  • Brakes - front axle

Specifications

Overall Width (mm)2300
Overall Length (mm)6940
Overall Height (mm)1100
Axles StandardTandem
Track Width (m)1.62
Tare Weight (kg)2180
Tyre Size11.5/80-15.3

All equipment is guaranteed for a period of 12 months from date of entering service, provided that such equipment has not been subject to improper usage and/or overloading or any other conditions contrary to the manufacturers specifications or recommendations. Specifications subject to change without notice. Estimated weights are based on a standard configuration and may change if options are added or removed.
