Vineyard Wagon

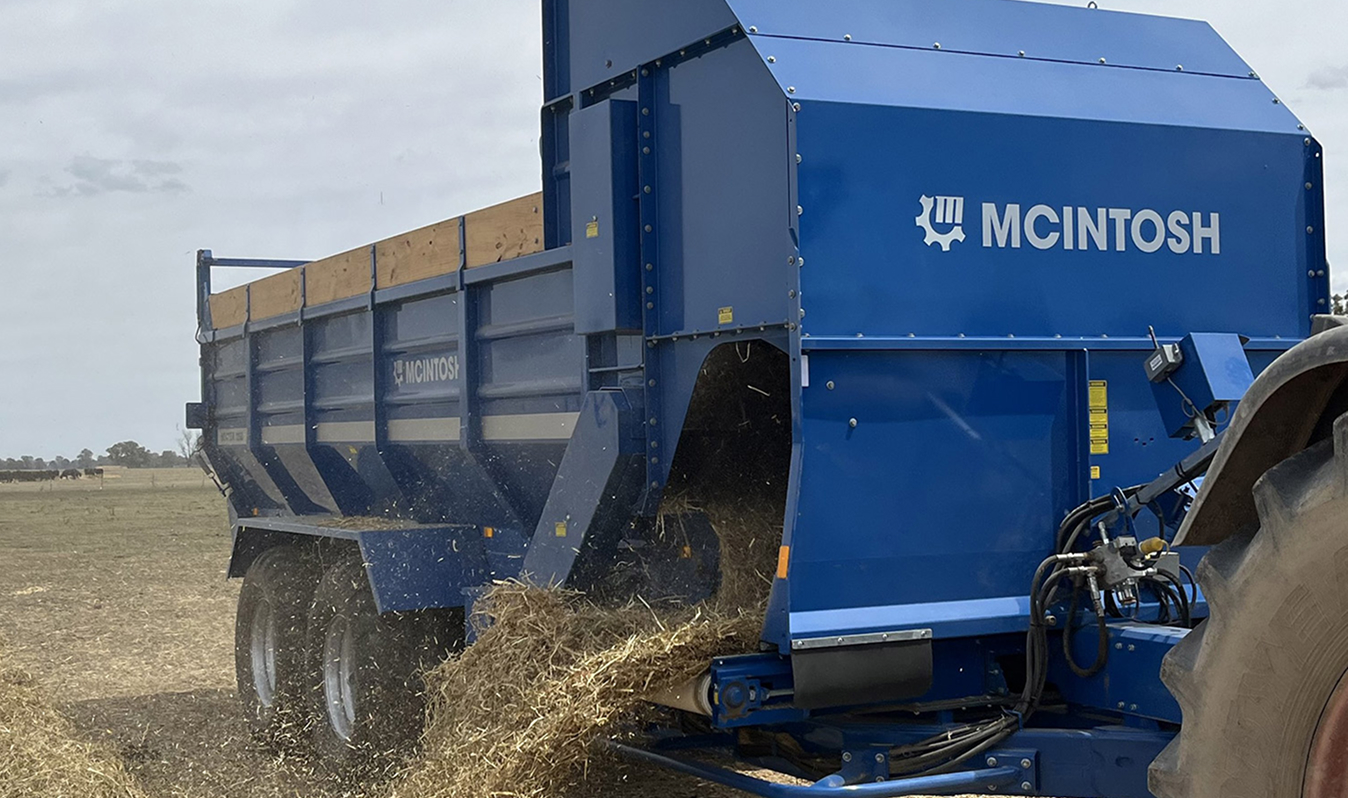

The McIntosh Vineyard Wagon is designed to assist in applying straw and light material compost quickly and efficiently onto your vine rows. We have developed a straw and compost applicator wagon that is suitable for row spacing of three meters or above. We have done this with consultation with actual grape growers to try and get the most practical real life application.

Standard Features

Large 12m3, 8 tonne capacity bin.

Three Horizontal PTO - driven beaters

1200mm wide discharge belt conveyor

Special fold down rear door panel for in-row filling

Steerable drawbar for tighter turning and in-row adjusting.

11.5 x 15.3 Traction tyres

Front vine deflector plates

3mm pressed steel sides and 5mm steel floor.

Compost feed-out

Straw Feed-out

Remote grease lines to walking beam axles and rear idler sprockets.

In cab display of steering angle.

High quality 2-pack paint finish, including sandblasting and sealing prior.

Double 80 degree CV Shaft for PTO operation when turning.

13mm high tensile chains used throughout

75 x 40 channel, bolt on floor slats

Augers rotate towards the centre

Bisalloy steel tips on augers

Bolt on mudguards

Bronze bushed axle pivots

Driven by 11/4" and 1" simplex roller chains

Electric Floor speed control

Fully welded construction

Gearbox on floor drive


Large diameter conveyor roller

PTO driven augers with ratchet clutch

Tandem oscillating axle

Tracing strip on cross conveyor

Optional Extras

4 wheel hydraulic brakesRHS mudguard protection
Road use signage kit and lightsSkid 300mm long
Pivoting cross conveyor extensionWalkway 250mm wide

Load cells on 4 points with optional

  • Alarm
  • Dummy load cells
  • Remote display
Other options available on request

All equipment is guaranteed for a period of 12 months from date of entering service, provided that such equipment has not been subject to improper usage and/or overloading or any other conditions contrary to the manufacturers specifications or recommendations. Specifications subject to change without notice. Estimated weights are based on a standard configuration and may change if options are added or removed.
