Beater Wagons

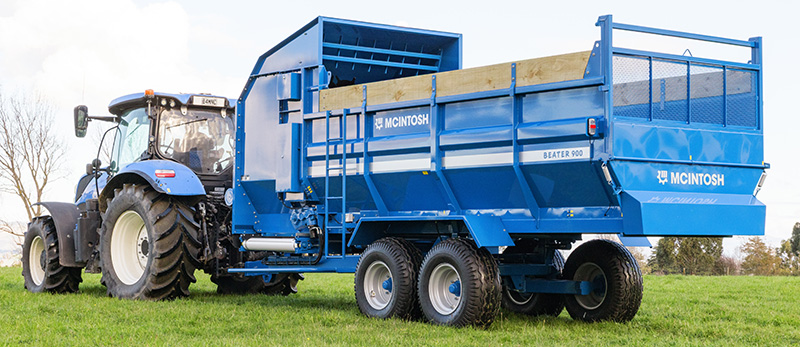

Beater Wagon McIntosh Farm Machinery

Designed to provide a more consistent and even mix, the McIntosh Beater wagon is an addition to the conventional chain elevator system. The unique design with three PTO-driven horizontal beaters allows for better incorporation and more consistent blending of different products. Bales are broken up so that cows do not have to lift their heads to drag the feed apart, resulting in less wastage. McIntosh Beater Wagons can handle round and square bales quickly and efficiently, operating in both field and feed pad conditions.

Standard Features

BACK TO TOP
Side view showing beater attachment and hood

Beater Attachment & Hood

Side view showing beater attachment and hood which channels the feed onto the belt.
Three PTO driven horizontal beaters

Horizontal Beaters

Three PTO driven horizontal
beaters.
Feeding maize, potatoes and large square bales.

Feeding Maize

Feeding maize, potatoes
and large square bales. The
square bale is completely
broken up.
Round bales loaded into wagon ready to be fed out

Loading

Round bales loaded into
wagon ready to be fed out.
Feeding round bales into troughs

Feeding

Feeding round bales into troughs with an even
distribution.
Augers

Augers

The augers completely break up round bales for more even feeding.
The long throw is ideal for feeding into troughs

Long Throw

The long throw is ideal for feeding into troughs.
Round bales in a long, even, continuous line

Round bales

Round bales after feeding in a long, even, continuous line. This is hard to achieve with a conventional elevator.
Feeding maize, potatoes and square bales

Feeding Maize

Feeding maize, potatoes and square bales





  • Available from 12-20m3
  • 3mm pressed steel sides
  • 5mm steel floor
  • 13mm high tensile chains used throughout
  • 75 x 40 channel floor slats
  • 900mm wide conveyor belt
  • Augers rotate to centre
  • Bisalloy steel tips on augers
  • Bolt on fixed towing eye
  • Bolt on floor slats
  • Bolt on mudguards
  • Bronze bushed axle pivots
  • Driven by 1¼” and 1” simplex roller chains
  • Electric floor speed control
  • Fully welded construction
  • Gearbox on floor drive
  • High quality paint system
  • Ladder
  • Large diameter conveyor roller
  • PTO driven augers with ratchet clutch
  • Tandem oscillating axle
  • Tracing strip on cross conveyor



Optional Extras

BACK TO TOP
Optional four floor chains

Four Floor Chains

Four floor chains to provide longer life for chains and sprockets.
Optional LED tail lights mounted high for better visibility

LED Tail Lights

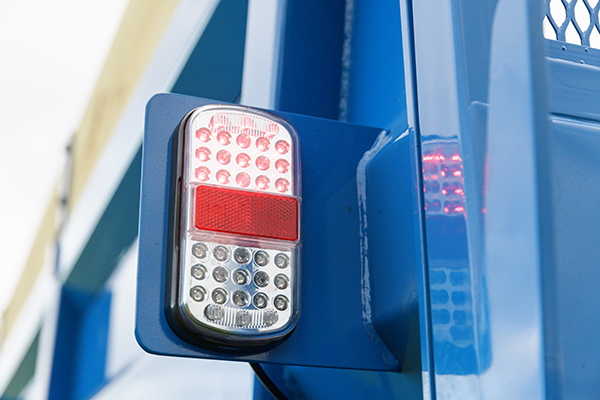

LED tail lights mounted high for better visibility.

Brakes

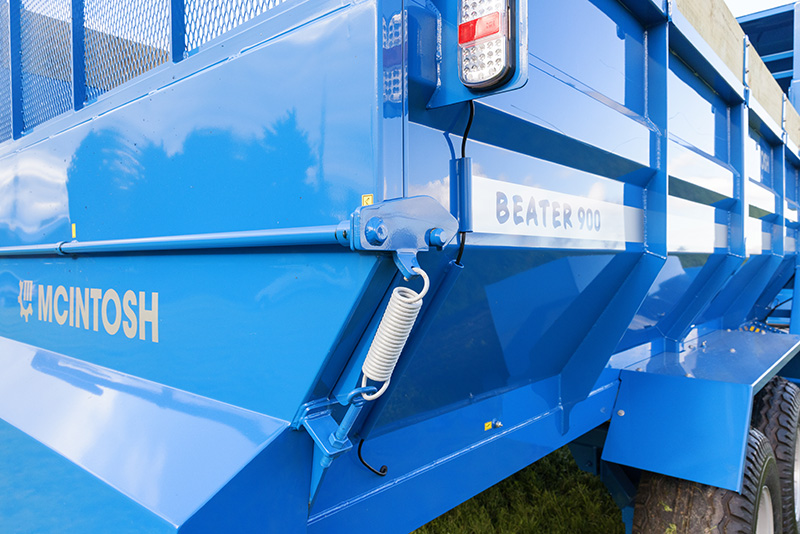

Brakes on 2 or 4 wheels with extra adjustable external return springs to ensure brake pad release. Also available as air brakes







Optional four floor chains

Cross Conveyor

The optional 1200mm cross conveyor has a larger opening than the 900mm conveyor. This helps when feeding out square and round bales

Chain Cross Conveyor

The chain cross conveyor provides another option for those who want less maintenance than a belt conveyor. Complete with larger valve and separate speed control for the cross conveyor.

Optional LED tail lights mounted high for better visibility

Pivoting Cross Conveyor

Pivoting cross conveyor extension for feeding over fences and troughs. It has two lifting rams, a separate hydraulic motor and a tracking strip on the belt.







Optional four floor chains

Mudguard Protection

RHS mudguard protection. Now sits under the mudguard.

Optional four floor chains

Wide Walkway

The 250mm wide walkway helps when loading bales and minerals.







  • 4 floor chains
  • Grease gun holder
  • Grease hose from walking beam to mudguard
  • Swivel drawbar tongue
  • Hydraulic conveyor extension 200mm
  • Load cells on 4 points with optional
    • Alarm
    • Dummy load cells
    • Remote display
  • Skid 300mm long
  • Tyre size options
  • Other options available on request

Beater Wagon Specifications

BACK TO TOP
 800900100012001200 Wide
Cubic Capacity (m³)12.414.31617.618.4
Cubic Tonne (approx)8910.51212
Overall Width (m)2.352.452.452.452.75
Overall Length (m)7.057.808.509.108.50
Loading Height of Bin (m)2.582.602.602.602.60
Axles StandardTandemTandemTandemTandemTandem
Track Width (m)2.242.242.402.402.70
Tare Weight M/C (approx kg)29023286431248504735
Tyre Size12.5/80-15.315/70-18385/65R22.5385/65R22.5385/65R22.5
Cross Conveyor Height (mm)750750730730730
Floor Chains33333
